- Size: 0.002
- Place of Origin: Shenzhen, China
- Brand Name: SOSLLI
- Model Number: SSL-13S6P20I
- Weight: 4.000 kg

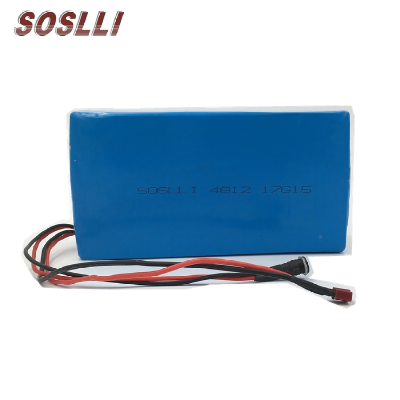

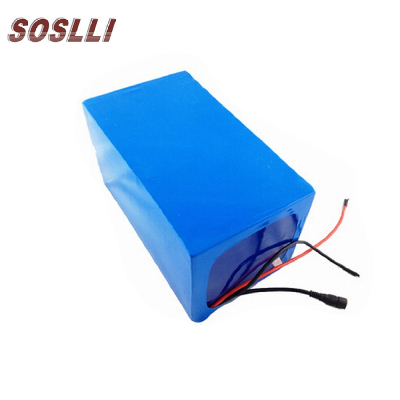

48V 12Ah Lithium ion battery pack for solar light system with 18650 3.7v lithium ion cell:
| No. | Item | Specification | Remarks | |
| 1 | Brand Name | SOSLLI or OEM | ||
| 2 | Model NO. | SSL-13S6P20P | ||
| 3 | Normilar Capacity | 12.0Ah | 0.2 C5A discharge | |
| 4 | Normilar Voltage | 48V | ||
| 5 | Discharge Voltage (Min.) | 35.75V | ||
| 6 | Charging Voltage (Max.) | 54.6V | ||
| 7 | Charging Current (std.) | 0.5 C5A | ||
| 8 | Discharging Current (Max. continue) | 1 C5A | ||
| 9 | Discharging Current (Max. temporary) | 2 C5A | ||
| 10 | Charging Temperature & Humidity | 0℃ ~ 45℃ 45~85%RH | ||
| 11 | Discharging Temperature & Humidity | -20℃ ~ 60℃ 45~85%RH | ||
| 12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ 60℃ 45~85%RH | |
| Min. 3 months | -20℃ ~ 45℃ 45~85%RH | |||
| Min. 12 months | -20℃ ~ 25℃ 45~85%RH | |||
| 13 | Battery Type | Li-ion battery 18650 2500mAh | ||
| 14 | Internal Impedance | ≤60 mΩ | ||
| 15 | Protection Fuctions | Over charge, Over discharge, Over load, Short Circuit | ||
| 16 | Size | 200*135*75mm | Recommend or Customize | |
| 17 | Weight | Approx. 4.0kg PVC packing | ||
| 18 | Cycle Life | 800 times | ||
| 19 | Warranty | 12 months | ||
Lithium ion battery PACK 48V series with 3.7v 2000 mAh 18650 cell as below.
| Model | Voltage | Capacity | Size/Weight(package) |
| SSL-13S4P20I | 48V | 8Ah | 200*100*75mm or Customized |
| SSL-13S5P20I | 10Ah | Recommend or Customized. The Lithium ion battery PACK can packing with PVC/Plastic box/Iron box that size/weight is according to the battery solution. | |
| SSL-13S6P20I | 12Ah | ||
| SSL-13S7P20I | 14Ah | ||
| SSL-13S8P20I | 16Ah | ||
| SSL-13S10P20I | 20Ah | ||
| SSL-13S15P20I | 30Ah | ||
| SSL-13S20P20I | 40Ah | ||
| SSL-13S40P20I | 80Ah |
Typical Advantages of SOSLLI Lithium Ion Battery Cell:
1. Low self-discharging, no memory effect.
2. Triple protection designs to prevent short-circuit inside the cell.
3. Circle life longer than 500 time @80% capacity retain.
4. Large batch production, offering very similar cells for rating.
